Big Data and Machine Learning: What Is It and Can We Use It for 4R Nutrient Management?

Ag Modeling and Machine Learning

When vetting commercially available ag modeling services, it is important to understand the buzzwords, particularly in the context of agronomy. Firstly, “ag modeling” is already common practice in agricultural sciences with both traditional statistical models as well as more modern ML models being used by researchers.

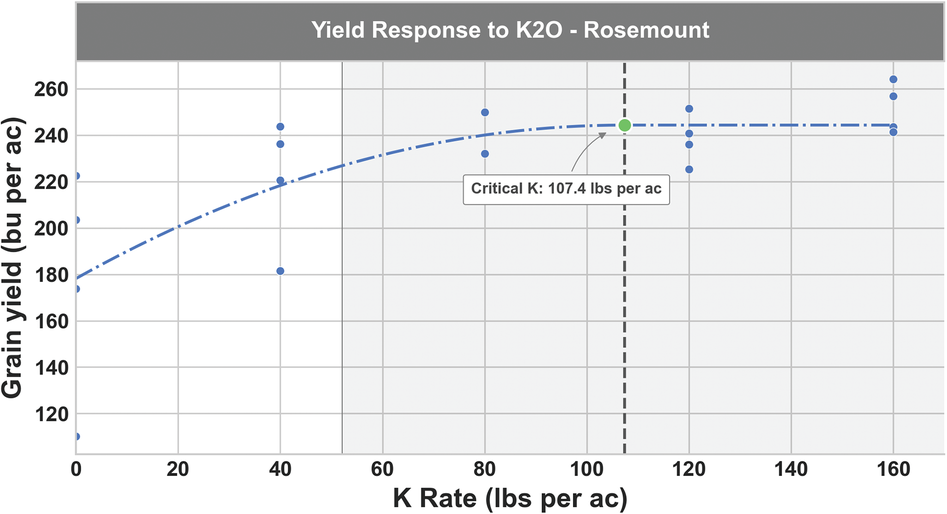

Traditional statistical modeling uses equations to characterize the relationship between variables, such as the relationship between yield and potassium rate, as depicted in Figure 1. Figure 1 shows the optimal potassium rate in corn with a quadratic plateau model (y = a + bx + cx²). Traditional statistical modeling is commonly used by University Extension to determine crop response to fertilizer rate and develop fertilizer recommendations.

Similar to traditional models, ML models also have their own equations. The ML equations can be complex or simple. Where ML stands apart from traditional modeling is that the computer “iterates” to optimize the model fit to the data in a process that includes “training,” “tuning,” and “testing.” During the many iterations, the computer “learns” the optimal parameters of the equation. For a simple example, an ML algorithm could be developed to optimize the equation values a, b, and c in the model in Figure 1 (the slope, the intercept, and the quadratic term [the apex of the parabola]). Through the iterations, the computer can find patterns in the data that may not be evident to a researcher to optimize a model.

When to use traditional statistical models versus ML models mostly depends on the agronomic objective. Traditional statistical approaches use an experiment design, like a plot or strip trial, that is randomized and replicated and evaluates a “treatment” such as nitrogen rate as it impacts yield.

In contrast, ML can use datasets with many interacting treatments, non‐traditional experimental designs, and various spatial scales. Simply put, it does not require the experimental setup like traditional statistics does.

Machine‐learning statistics do not rely on the classical statistical power from randomization and replication. Instead, ML statistics rely on cross‐validation. Cross‐validation is a process where the dataset is split into two groups: data to train the model and data to test the model. The model error in the test dataset indicates how well the model performs (i.e., accuracy of predictions).

Machine‐learning models are best suited for understanding a physical phenomenon from various measurements that could be interacting with one another. For example, crop yield could be predicted with an ML model using a suite of field factors including weather, historical yield data, and soil information. There is no specific “treatment” impacting yield that we are trying to measure, but rather a larger physical phenomenon with multiple variables impacting it.

When it comes to nutrient management, ML algorithms are built to predict crop nutrient status, optimal nitrogen (N) rates, and growth stage or to create management zones. This is largely possible because of the amount of data available from each farm.

Big Data and Data Sources

In general, farms make great candidates for ML because of the immense amount of data that can be collected each year, making them sources of “big data.” Many growers have been collecting yield data for more than a decade. In addition to yield data, growers may have soil test data and valuable management information (crop, rotation, planting date, etc.). All this on‐farm data along with environmental data can be powerful in explaining yield variability and holds great promise for building ML models (Bullock, 2019).

In addition to on‐farm management data, a plethora of sensors have been released in the ag marketplace to offer more opportunity for data collection. The 2022 Precision Agriculture Dealership survey shows that more than half (55%) of retailers offer UAV or drone imagery and 18% offer chlorophyll or greenness sensing. These and other sensors, like weather station sensors, can provide vast amounts of data to describe soil conditions, weather patterns, and field variability that can be used in ML models. However, in considering what sensors and measurements are necessary, growers and consultants should always keep in mind the question they are aiming to answer.

If the goal is to optimize N applications, the first step is to identify the field features that influence N. Field factors like organic matter or a greenness measurement from a near‐infrared (NIR) camera sensor have a strong relationship with N dynamics. Therefore, these field features would likely be important to measure and include in a ML model to predict N status.

Throwing as much sensor data as possible into an ML model is not the answer to more accurate nutrient predictions/recommendations. Using unnecessary data can actually create “noise” in any model and cause inaccurate predictions. It could be a red flag if companies are throwing the kitchen sink at problems as they might be lacking the foundational agronomic knowledge. In choosing what sensors to use and data to collect, lean into agronomic knowledge to inform which measurements will be most valuable. Machine‐learning models in conjunction with agronomic knowledge are the best path forward to achieve accurate predictions (Chlingaryan et al., 2018).

Applications for Machine Learning in 4R Nutrient Management

In regard to 4R nutrient management, interest has grown in using ML to optimize the right rate, right timing, and right placement of N in particular.

According to the 2022 Precision Agriculture Dealership Survey from Purdue, 49% of growers are using variable‐rate technologies (VRT), and just short of 90% of dealers offer VRT services for nutrient applications (Erickson, 2022). It is common to use VRT for site‐specific applications of P and K based on soil test levels, but N is more of a challenge. Unlike the other two primary nutrients (P and K), N is highly reactive in soils and often changes forms (e.g., NH₄ to NO₃ through nitrification). The transformation of N in soils is often influenced by moisture and temperature, making it difficult to predict the optimal N rate for any area of the field.

Given the challenge of optimizing N rates, ML solutions have been pursued in the hopes that the computer may be able to find data patterns to make better N recommendations. Some ML approaches include: (1) predicting crop N status, (2) predicting the optimal N rate, (3) forecasting crop growth, and (4) creating management zones for N applications.

The first approach uses data from sensors and satellite imagery along with additional field information to build ML models that can identify areas within fields with nutrient deficiencies. Farmers can then tailor nutrient application to places in the field where fertilizer is needed, optimizing the right place of the 4Rs. However, this strategy requires substantial collection of remotely sensed data and the ability to apply nutrients throughout the season. High‐value crops have been an entry point for this type of technology.

A second ML approach used for nutrient management is predicting the economically optimal N rate (EONR) within fields or for a whole field, the right rate of the 4Rs. Researchers have found mixed success with this approach. A 2022 study in of canola production in Canada found that using ML models could reasonably predict optimal N rates for split applications when historical and current weather conditions were included in the model (Wen et al., 2022). However, a Nebraska study in corn found that ML models built from data in one field could not be used to accurately predict N rates in other fields (de Lara et al., 2023). There is much to learn and improve in this area of ML prediction. Researchers have concluded that as technology improves, there is great opportunity to employ ML, but today more research is required to widely deploy it for N rate predictions (de Lara et al., 2023; Chlingaryan et al., 2018).

Machine‐learning models can also be built to forecast crop growth stages throughout the season. Knowing the growth stages of the crop can allow for tailoring fertilizer applications to the time of greatest nutrient demand. In this manner, the right time of the 4Rs can be improved (Yue et al., 2020).

Other management strategies such as the creation of management zones can also be aided by ML models. Using data from various sources, including topography maps, weather stations, and soil data, ML algorithms can be used for zone creation and to identify the most important field features for guiding nutrient prescriptions. With zones established, nutrient applications can be customized for each zone (Jaynes et al., 2011; Nawar et al., 2017).

A better understanding of nutrient status and crop yield across fields can help increase the accuracy of nutrient applications, minimizing unwanted environmental impacts and costs for growers. Predicted nutrient status, optimal N rates, crop growth stage, and delineation management zones can all be used to optimize the 4Rs, ensuring that nutrients are supplied at the right place, time, and right rate.

Challenges in Machine Learning and Ag Modeling

Future of Machine Learning in Nutrient Management

Big data and ML have the potential to transform agriculture and 4R nutrient management practices. The integration of these technologies empowers farmers to adapt to variable conditions, optimize applications, and minimize environmental impact. While challenges such as data quality must be addressed, the future prospects are promising. Growers and agronomists can prepare for the use of ML by being diligent in organizing and recording their farm practices. Farm management information will be key to help build these models.

Continued advancements in ML and increased collaboration among stakeholders will drive the adoption of ag tech in agriculture, providing a meaningful tool for implementing sustainable and efficient 4R nutrient management practices.
